Max Panel size：≥H:16m*W0.5m.【There is no any cable connection in the panel】
Light Weight：＜6.4G/sqm.【save Steel Structure cost】
Low Power：Average Power/square meters70W.【Lower Running Cost】
High transparent Rate：64%, Good Ventilating and Heat dissipation . 【do not effect indoor's nature sunlight and also not effect view vision】
1.LED display Media Curtain on Glass wall

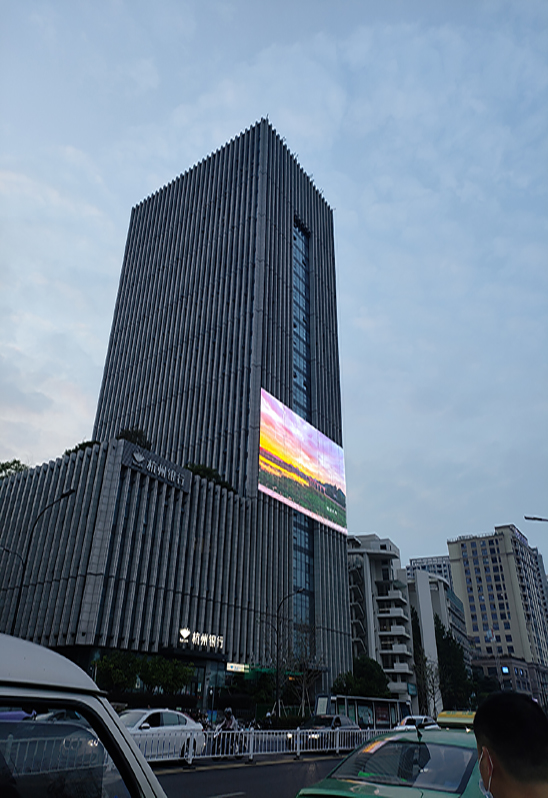

2.LED advertising display, Media Curtain on Public places, LED Mesh on building.
3.Large-scale LED display Media Facade with any shape Architecture.
4. LED Facade Lighting etc.
| Item | H1531s | H2031s | H2531d | H3131d | H5050d |

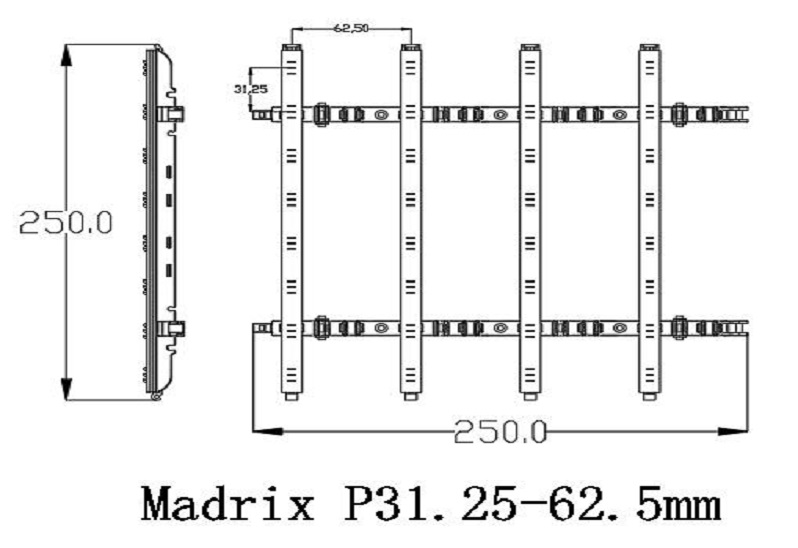

| Pixel Pitch | H:31.25,V:15.625 | H:31.25,V:20.83 | H:31.25,V:25 | 31.25 | 50 |
| LED Chip | SMD3535 | SMD3535 | DIP346 | DIP346 | DIP346 |
| View Angle | 120° | 120° | 120°*60° | 120°*60° | 120°*60° |
| Pixel Config | 1RGB | 1RGB | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel Density | 2048 PX/M2 | 1536 PX/M2 | 1280 PX/M2 | 1024 PX/M2 | 400 PX/M2 |
| Gray Level | 12BIT | 12BIT | 12BIT | 12BIT | 12BIT |
| Brightness | 6000CD | 4600CD | 8000CD | 7000CD | 3600CD |
| Transparent Rate | 64% | 64% | 64% | 64% | 75% |
| Repetition Frequency | 60FPS | 60FPS | 60FPS | 60FPS | 60FPS |
| Refresh Frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Working Voltage | DC12V | DC12V | DC12V | DC12V | DC12V |
| Max Power | 600W/M2 | 320W/M2 | 270W/M2 | 215W/M2 | 84W/M2 |
| Weight | 6.4kg/M2 | 6.4kg/M2 | 6.4kg/M2 | 6.4kg/M2 | 4kg/M2 |
| Lifespan | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H |
| IP Rate | IP66 | IP66 | IP66 | IP66 | IP66 |
| Fire Rate | V0 | V0 | V0 | V0 | V0 |
| Max Connection Pixels | 512 PX | 504 PX | 512 PX | 512 PX | 384 PX |
| Max Connection Length | 8m | 10.5m | 12.8m | 16m | 16m |
