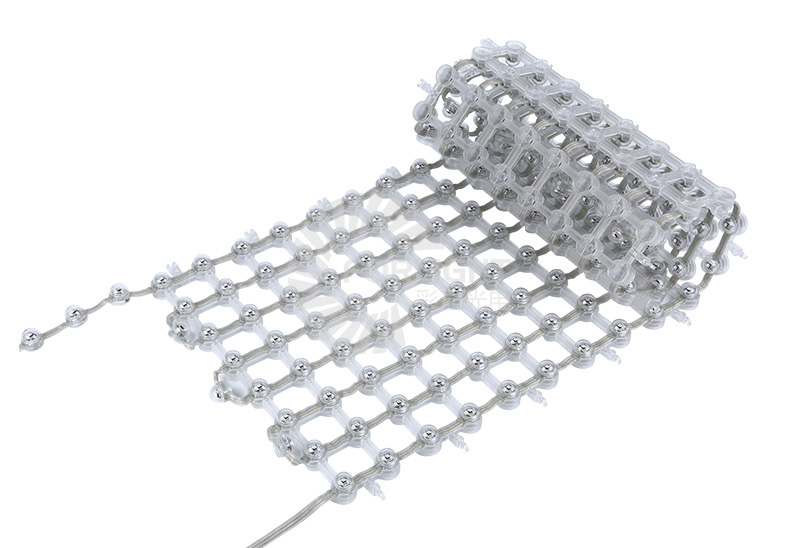

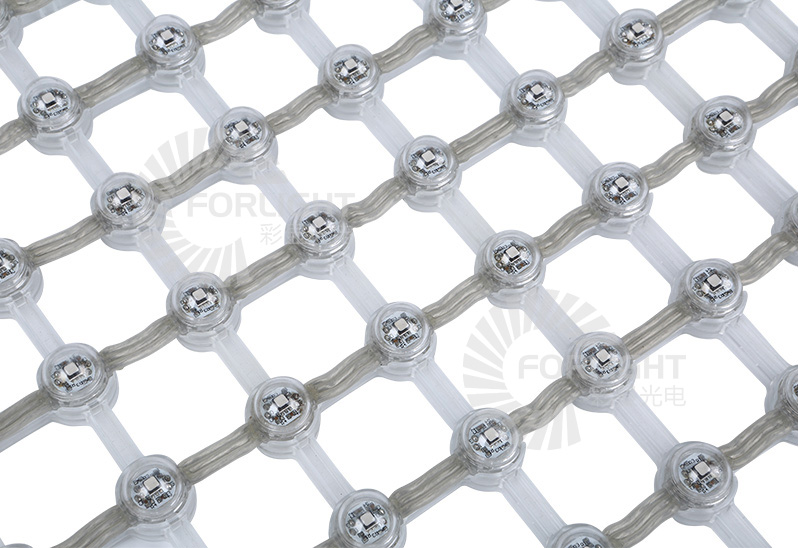

LED Mesh Screen - LED Mesh Screen C-16，Suit for any irregular LED Mesh screen project

Description

1.Light weight.

2.IP66 waterproof protection.

3.Low power consumption,low operation cost.

4.Transparent rate as 60%-90%, The mesh screen almost invisible in the sunlight, wont effect nature sunlight from outdoor nor beauty of architecture.

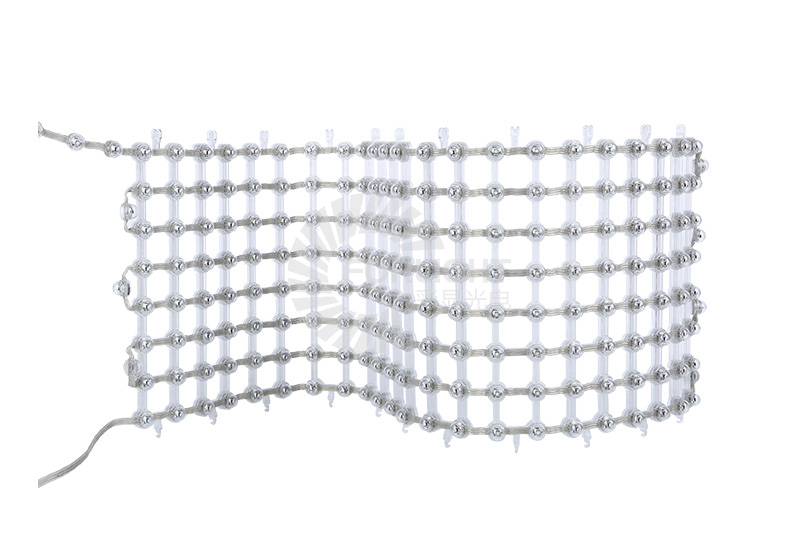

5.Super flexible of mesh screen, suitable to make any regular project and irregular project.

6.Simple and multiple installation design.

7.Anti-UV, LED shape won’t turn to yellow color in 3 years.

1.LED Mesh screen, Big LED Media Wall Facade, Sphere shape screen, Irregular sign etc.

2.Various architecture Media Facade.

3.Other lighting system

Product Video

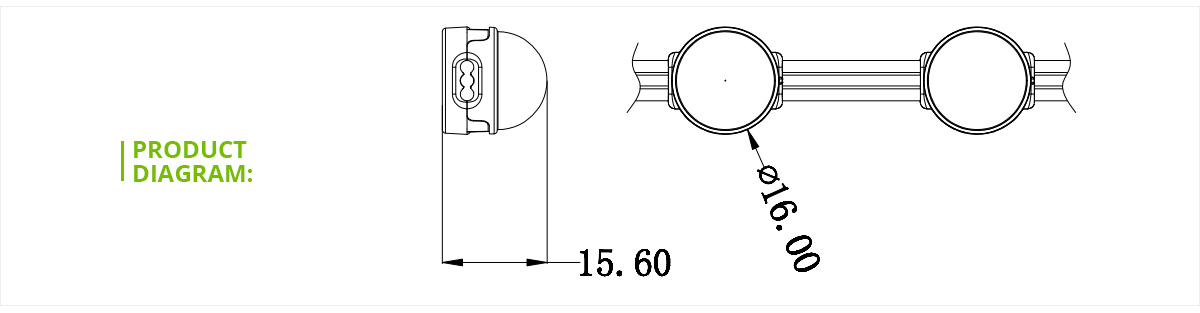

Product Size

Product Parameters

Mode	P37.5	P56.25	P75	P100	P150	P200
Size	Φ16(mm)	Φ16(mm)	Φ27(mm)	Φ27(mm)	Φ27(mm)	Φ27(mm)
Materials	PC	PC	PC	PC	PC	PC
LED Chip	SMD3535	SMD3535	SMD3535	SMD3535	SMD3535	SMD3535
View Angle	120°	120°	120°	120°	120°	120°
LED QTY	1RGB	1RGB	3RGB	6RGB	6RGB	6RGB
Pixel Density	711 PX/M2	316 PX/M2	178 PX/M2	100 PX/M2	44 PX/M2	25 PX/M2
Gray Level	16BIT	16BIT	12BIT	12BIT	12BIT	12BIT
Brightness	2000CD	1000CD	1500CD	1500CD	600CD	400CD
Transparent Rate	70%	81%	85%	90%	96%	97%
Frame Frequency	30FPS	30FPS	30FPS	30FPS	30FPS	30FPS
Refresh Rate	1000Hz	1000Hz	1000Hz	1000Hz	1000Hz	1000Hz
Input Voltage	DC7.5V	DC7.5V	DC24V	DC24V	DC24V	DC24V
Max Power	280W/M2	125W/M2	160W/M2	90W/M2	40W/M2	20W/M2
Weight	4.1kg/M2	2.4kg/M2	3.5kg/M2	2.5kg/M2	1.4kg/M2	1kg/M2
Installation Mode	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire
Lifespan	≥50，000H	≥50，000H	≥50，000H	≥50，000H	≥50，000H	≥50，000H
Protection Level	IP66	IP66	IP66	IP66	IP66	IP66
Fire Rating	V1	V1	V1	V1	V1	V1
