P16mm Advertising display the brightness > 6000-8500 Nits, could automatically adjust the brightness by control system.
Designed with aluminum alloy and heat dissipation free, no need extra Fans to release heat.
Easy & Fast installation, also easy maintainance from front side & back side.
Cost Saving: Light weight < 12kg/sqm, Good ventilating system, Simple steel structures can form a large screen,can save a lot of cost of steel structure.
Transparent Rate: The transparent rate > 40%,won't effect nature sun light from outdoor.
Heat Dissipation: Design with aluminum alloy material, so it can cooling itself well. Power supply and controller put in aluminum alloy control box, No need extra specialized heat dissipation system.
Maintenance: Support Front side & Back side maintainance service.
Large LED Media Facade Building.
Glass Architecture Building.
Top of Architecture Building, and so on.
| Part No. | C-curtain 16mm | |

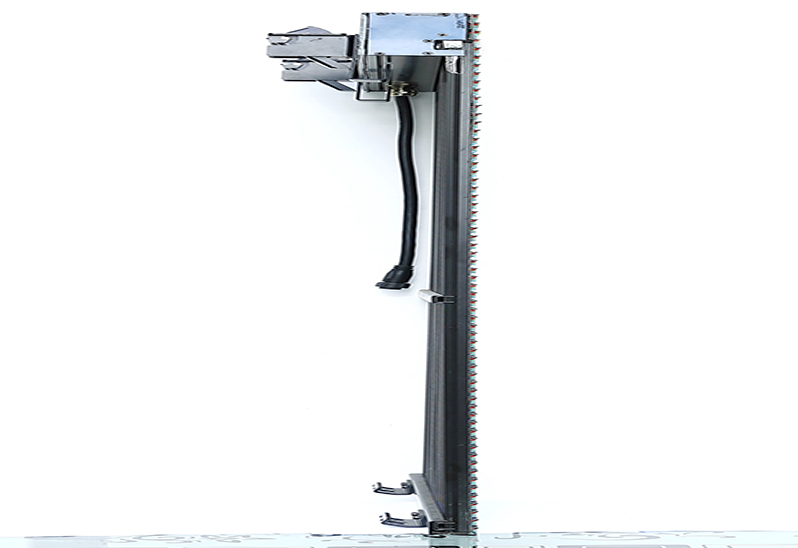

| Strip Size | H1000*W10(mm) | |

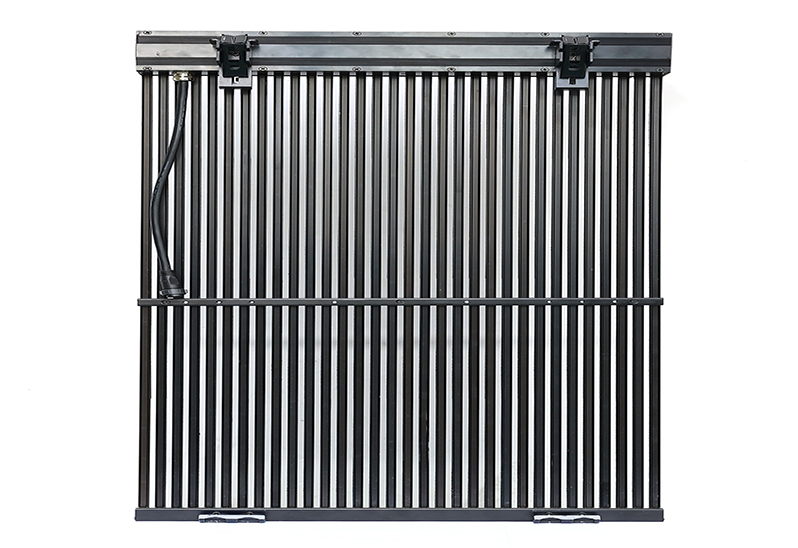

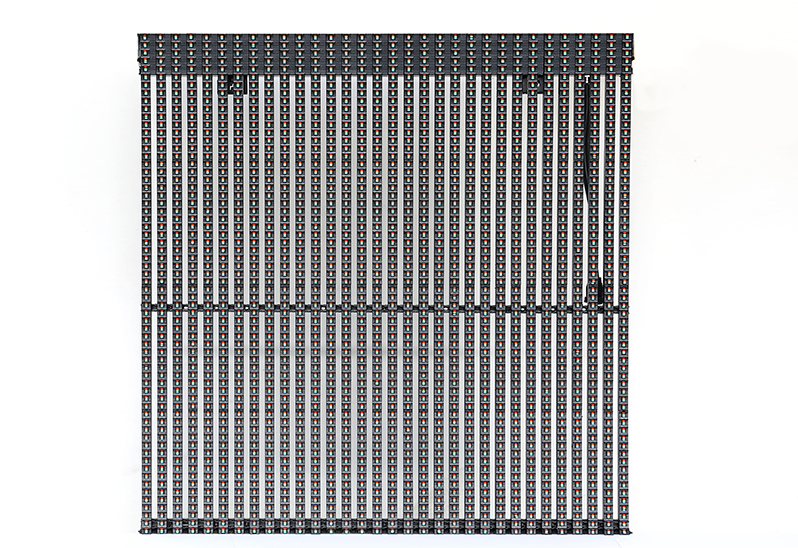

| Cabinet Size | W500*H1000*D60(mm) | |
| Strip Qty/Cabinet | 16 | |
| Material |
Aluminum + Black PC Cover （Color can be customized） |
|
| Pixel Composition | DIP346 | |
| Viewing Angle | H110°/V60° | |
| Pixel pitch | V: 16.67mm,H: 16.67MM | |
| Pixel Composition | 1R1G1B | |
| Pixel Resolution | 3600px/m² | |
| Brightness | CREE | 6500 NIT |
| High brightness | 8500 NIT | |
| Normal brightness | 6500 NIT | |
| Gray Grade | 3*16Bit | |
| Frame Frequency | 30~60FPS | |
| Refresh Frequency | ≥1000HZ | |
| Input Voltage | AC100--275V | |
| Working Voltage | DC5V | |
| Power consumption | Largest power≤400W/m²，Average power≤120W/m² | |
| Best Viewing | 16M--150M | |
| Installation Height | 16M--50M | |
| Best Displaying Area | ≥100㎡ | |
| Transparent rate | 40% | |
| Weight | ≤12KG/m² | |
| Strip Arrange Direction | Vertical | |
| Protection Grade | IP66 | |
| Working Temperature | -40℃ ~ 60℃ | |
| Working Humidity | 10--90%RH | |
| Driving Mode | Static | |
| Communication Port | USB，RJ45C | |
| Pixel Failure Rate | ＜1/10000 | |
| Average Failure Rate | ≥10000Hours | |
| Installation Way | Lifting/Surface Mounting | |
| Maintenance Mode | Front/Back | |
| Heat-Dissipating Method | Natural Heat Dissipating | |
| Cabinet and Connection Way |
Aluminum Alloy cabinets waterproof Connector |
|
| Fire rating | V1 | |
