LED Media Facade Screen - P40-2R2G2B Curtain LED Media Wall

  • P40-2R2G2B Curtain LED Media Wall
  • LED Media Facade Screen - P40-2R2G2B Curtain LED Media Wall

Description

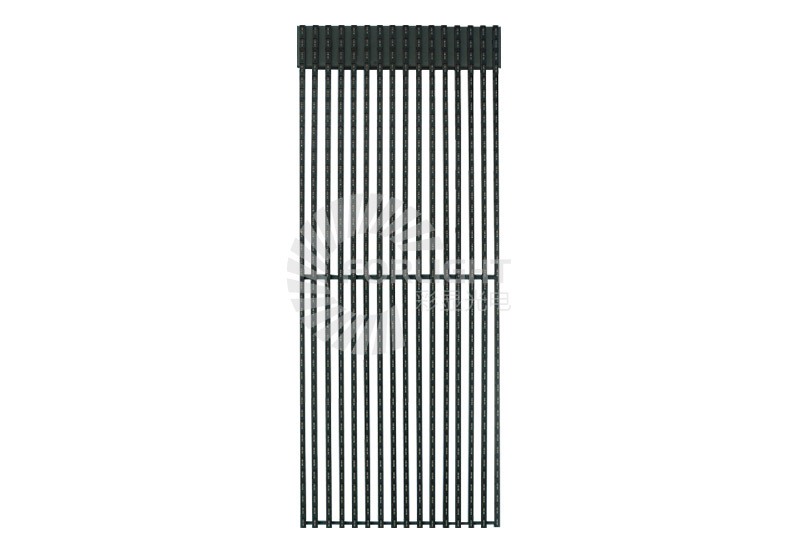

C-Curtain40Curtain LED Media Wall is an all-weather outdoor products, the outdoor protection ability is over IP66.The box is made up by aluminum alloy and have independent heat dissipation function. Using high quality raw materials, product quality is stable and reliable. C-Curtain40 Curtain LED Media Wall could be applied to large outdoor LED Media Facade, LED display wall, LED strip curtain display, grid screen and LED Video Wall etc. display system.

The main body of Curtain LED Media Wall is made by aviation grade aluminum alloy material. The surface have high strength, high anticorrosion function after having anodic oxidation process.

The Curtain LED Media Wall transparent rate is more than 60%,have superior performance on indoor lighting. The ability to resist the wind is also better, since the wind resistance is smaller. In addition, it’s weight is small, so we could build very large screen by using small amount of installation components.

The brightness of Curtain LED Media Wall is over 5000NIT, could automatically adjust the brightness by the system and have ideal video effects during day and night.

Feature:

 High Brightness:≥5000CD/M2.【for day and night application】

 Light Weight:Square meter<22KG.【save Steel Structure cost】

 Low Power:Average Power/square meters70W.【Lower Running Cost】

 High transparent Rate:≥55%. 【do not effect indoor Lighting and also do not effect Brightness】

Certification:

Application:

1.LED display Media Curtain on Glass wall

2.LED advertising display Media Curtain on Public places

3.Large-scale LED display Media Curtain

4. LED Mesh Screen etc.

Product Video

Product Parameters

Part No. C-curtain 40 C-Curtain 4080
Strip Size L1600*W17*H15(mm) L1600*W17*H15(mm)

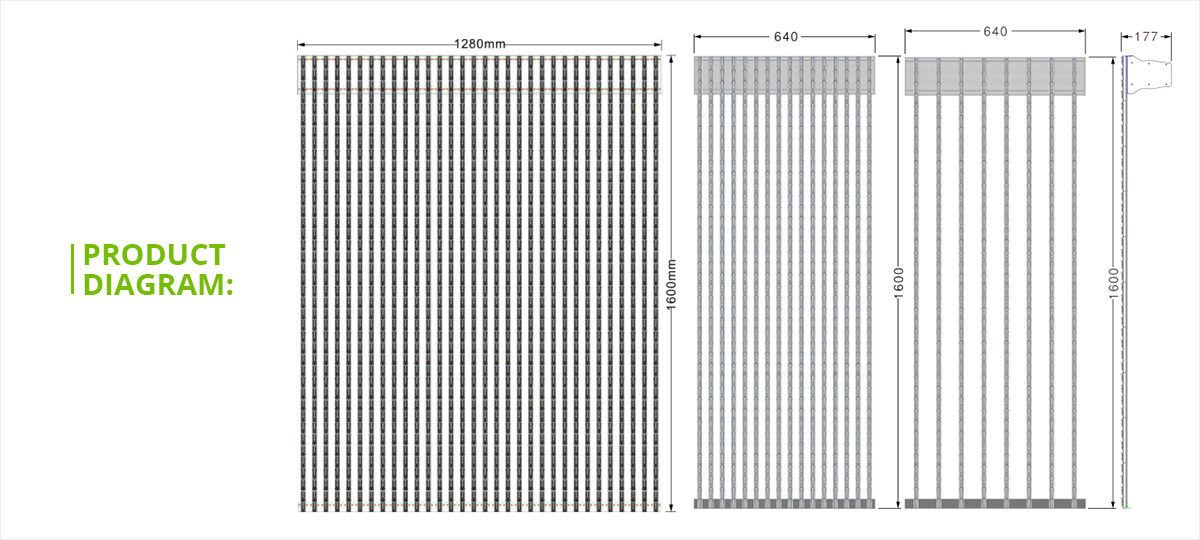

Cabinet Size W1280*H1600*H177(mm) W1280*H1600*H177(mm)
Strip Qty/Cabinet 32 16
Material Aluminum + Black PC Cover
(Color can be customized)
Aluminum + Black PC Cover
(Color can be customized)
Pixel Composition DIP346 DIP346
Viewing Angle H110°/V60° H110°/V60°
Pixel pitch 40mm   H80mm/V40mm
Pixel Composition  2R2G2B 2R2G2B
Pixel Resolution 625px/m² 312px/m²
Brightness CREE 5000 NIT 2500 NIT
High brightness 7500 NIT 4000 NIT
Normal brightness 5000 NIT 2500 NIT
Gray Grade 3*16Bit 3*16Bit
Frame Frequency 30~60FPS 30~60FPS
Refresh Frequency ≥1000HZ ≥1000HZ
Input Voltage AC185--265V AC185--265V
Working Voltage DC7.5V DC7.5V
Power consumption Largest power≤240W/m²,Average power≤70W/m² Largest power≤120W/m²,Average power≤40W/m²
Best Viewing 40M--200M 80M--400M
Installation Height 20M--50M 40M--100M
Best Displaying Area ≥100㎡ ≥150㎡
Transparent rate 57% 57%
Weight ≤15KG/m² ≤8KG/m²
Strip Arrange Direction Horizontal Horizontal
Protection Grade IP66 IP66
Working Temperature -40℃ ~  60℃ -40℃ ~  60℃
Working Humidity 10--90%RH 10--90%RH
Driving Mode Static Static

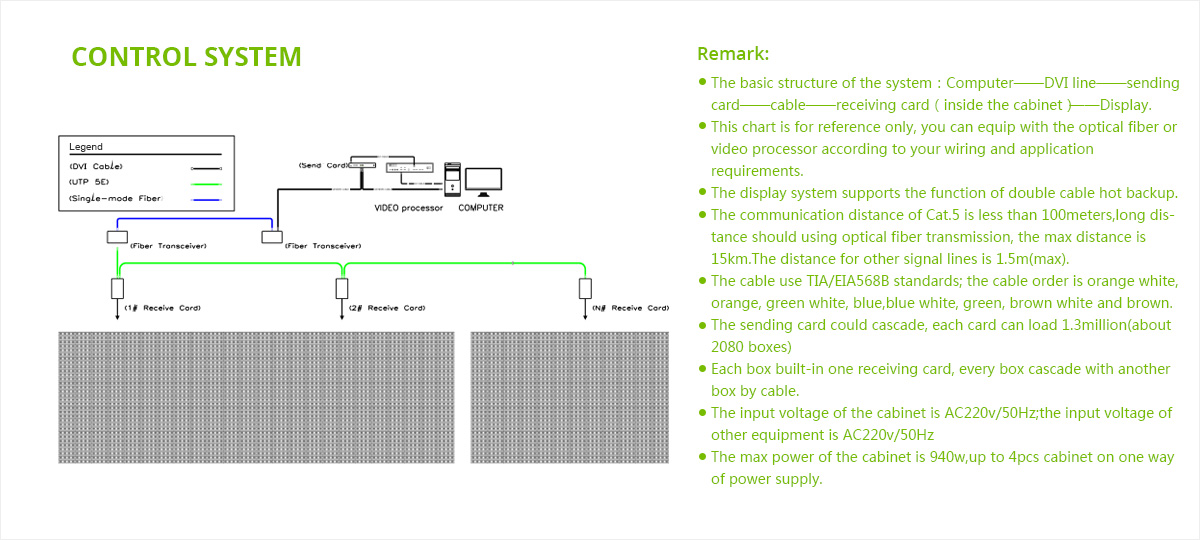

Communication Port USB,RJ45C USB,RJ45
Pixel Failure Rate <1/10000 <1/10000
Average Failure Rate ≥10000Hours ≥10000Hours

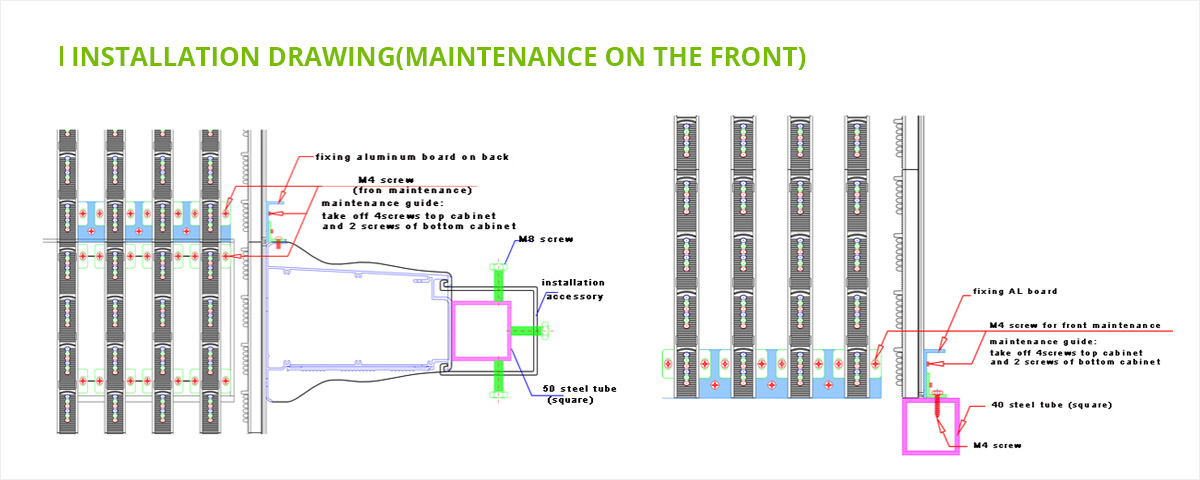

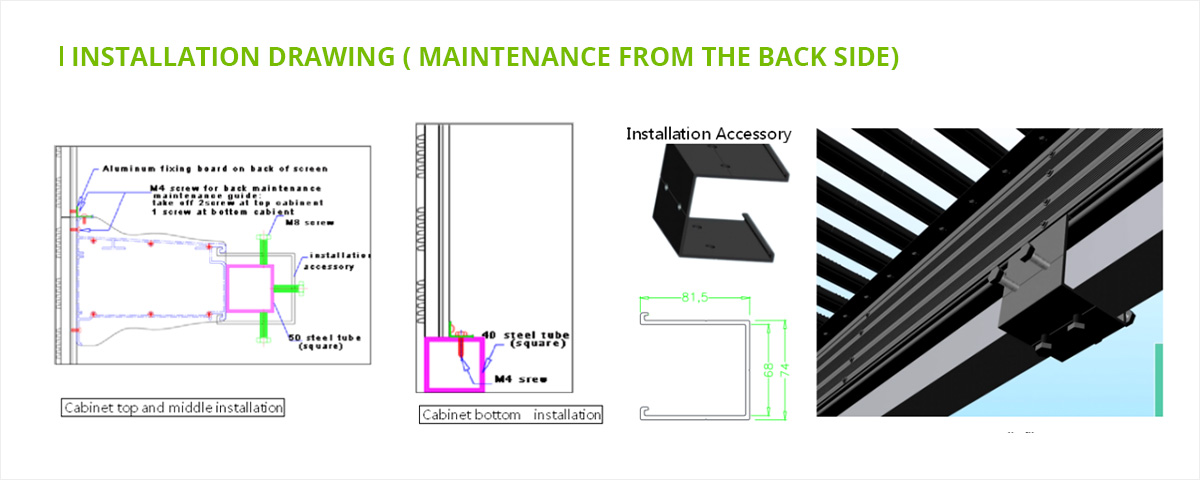

Installation Way Lifting/Surface Mounting Lifting/Surface Mounting
Maintenance Mode Front/Back Front/Back
Heat-Dissipating Method Natural Heat Dissipating Natural Heat Dissipating
Cabinet and Connection  Way Aluminum Alloy cabinets
waterproof Connector
Aluminum Alloy cabinets
waterproof Connector
Fire rating V1 V1

Product Details
